CLIENT DIGITAL TWIN & ENGINEERING DOSSIER REGISTRY

Select your assigned project card and enter your verified Client Access Key to unlock the interactive 3D WebGL Digital Twin, structural FEA models, and CAD/RCDC engineering deliverables.

PROPRIETARY PLATFORM BY SYED ABDUL RAHMAN IS 456:2000 & IS 1893:2016 BIM/FEA SHA-256 CRYPTOGRAPHIC ACCESS GATE INDIAN COPYRIGHT ACT 1957 PROTECTED
G+1 Residential Digital Twin Front East Elevation
3D REALISTIC DIGITAL TWIN • STAAD.Pro + RCDC LOCKED • KEY REQUIRED
CLIENT ID: SAR-MBNR-2026-G1-01
REF: MBNR/STR/2026/G1

G+1 Residential Building (59'-0" × 29'-0")

Plot & Plinth 59'-0" × 29'-0" (190.11 Sq.Yds)
Built-Up Area 1,756.56 Sq.Ft BUA
Location Ward & Block 1-7, Mahabubnagar
Engineering Dossier 3D WebGL Twin • 81+ Files
MULTI-CLIENT ARCHITECTURE READY
MULTI-TENANT ARCHITECTURE SLOT PROVISIONED
CLIENT ID: RESERVED FOR COMMISSIONED CLIENT
REF: SAR-2026-NEXT

Future Client Digital Twin Slot • SAR-2026-NEXT

Engineering Scope Architectural Planning • 3D FEA
Structural Engine STAAD.Pro • RCDC • AutoCAD
Cryptographic Gate Isolated SHA-256 Key Pair
Creator & Sole IP Syed Abdul Rahman
Interactive 3D Digital Twin Cockpit
STAAD.Pro • Bentley RCDC

Full WebGL engineering twin parsed directly from G1_Residential_Structure.std and verified against G1_Structural_Centerline.pdf. Inspect 3D physical rebar cages, moment Mz envelopes, shear Fy, or switch to realistic 3D architectural mode with interior cutaways.

Verified G+1 Engineering Telemetry
Plot Dimensions 59'-0" × 29'-0" 190.11 Sq.Yds
Plinth Footprint 45'-7.5" × 19'-3" 878.28 Sq.Ft / Floor
Total Built-Up Area 1,756.56 Sq.Ft G+1 Residential
Total Height 25'-3" (7.60m) GL to Parapet Top
Column Matrix 12 Nos C1-C12 230x300, 380, 450mm
Beam Framework 9" × 15" & 9" × 18" PB (9"x15"), FB/RB (9"x15"/18")
Foundation 12 Nos F1 (4'×4') @ -5'-0" (-1.50m GL)
Design Codes IS 456 • IS 1893 M25 • Fe500 TMT
Architectural Renders & Engineering Drawings
100% Plan Accurate

Ultra-detailed photorealistic V-Ray/Corona visualizations rendered strictly from the Municipal Submission Plan coordinates alongside high-definition vector engineering drawing sheets.

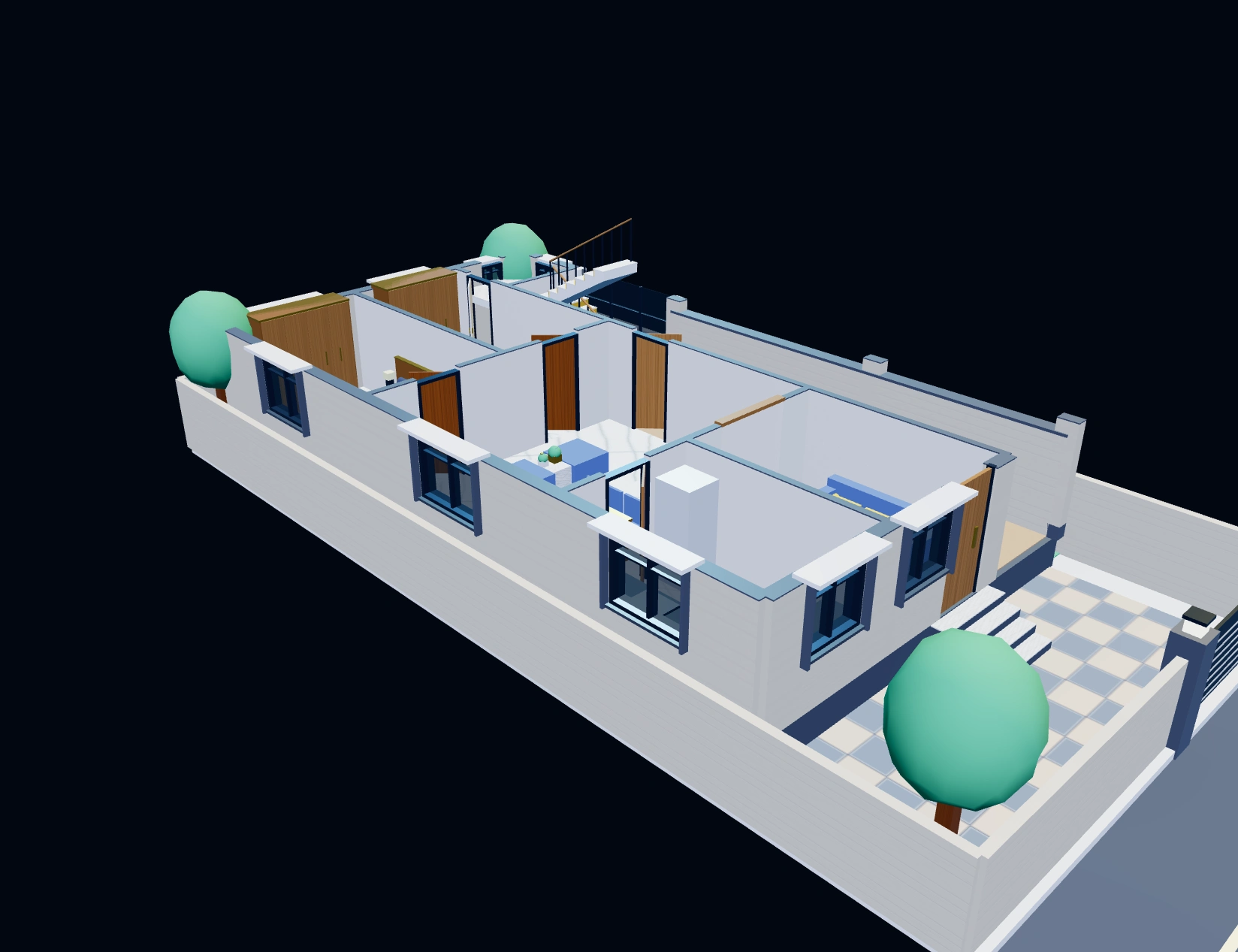

Ground Floor 3D Cutaway Plan
Ground Floor 3D Isometric Cutaway

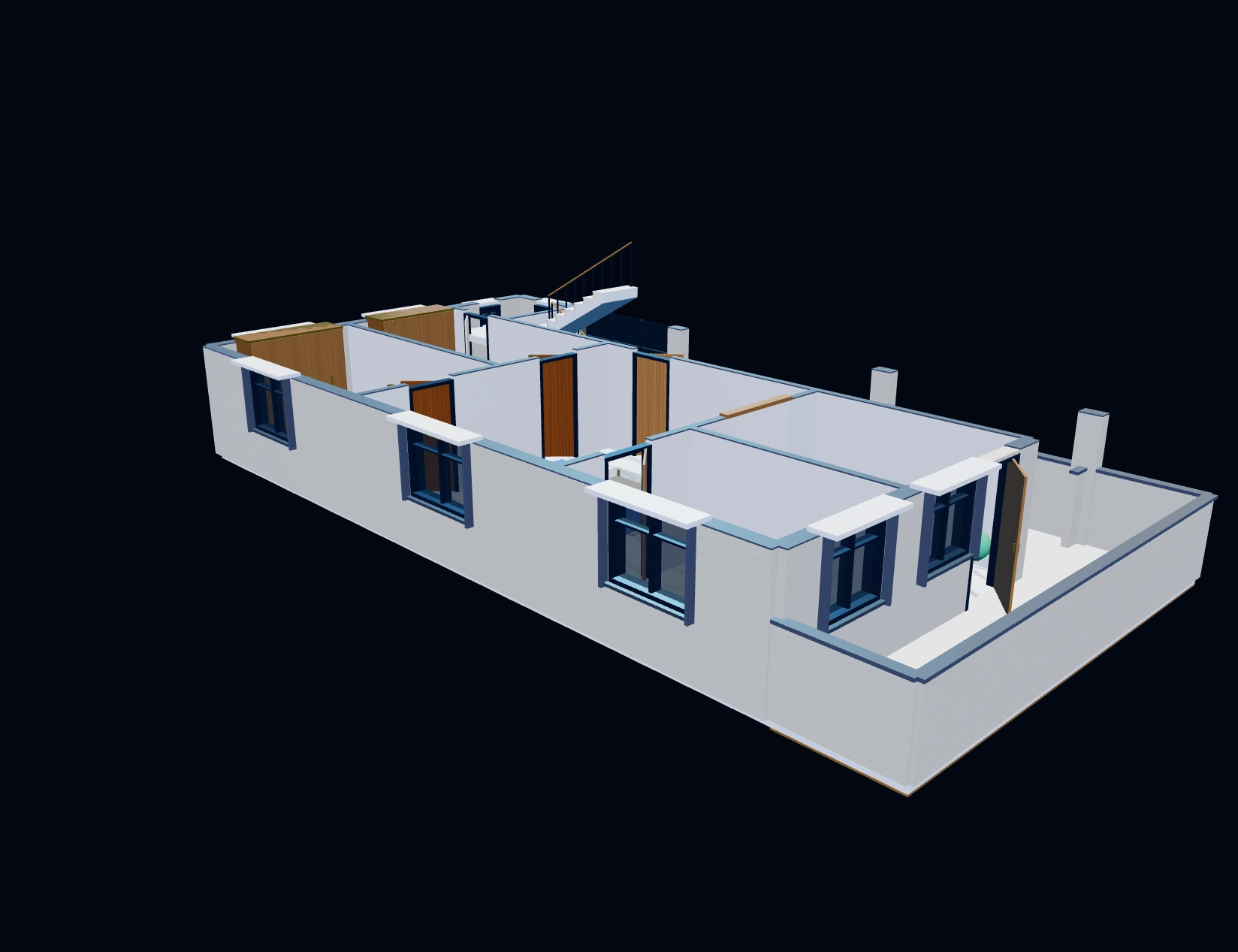

First Floor 3D Cutaway Plan
First Floor 3-BHK Sanctuary Cutaway

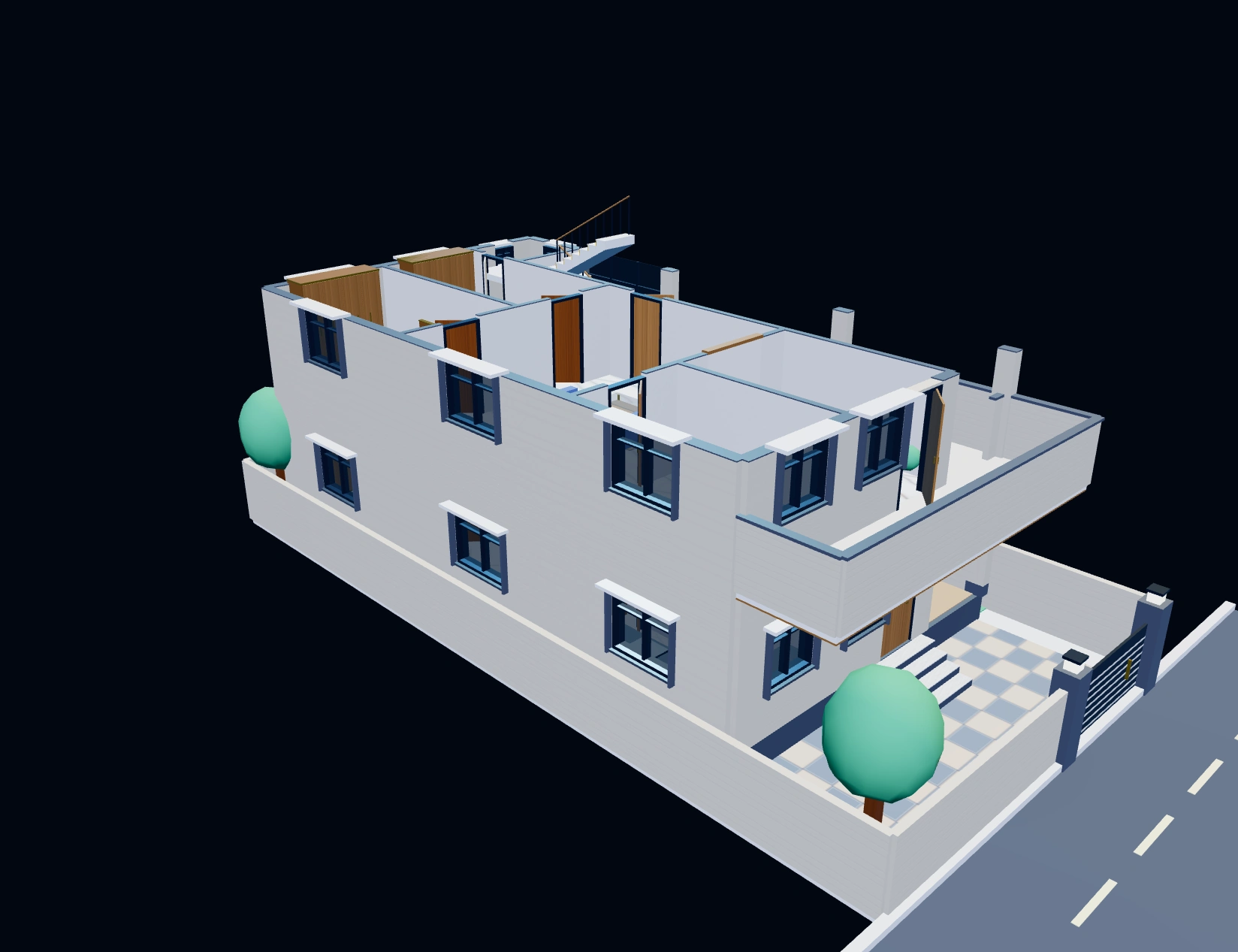

Front East Elevation Render
Front East Exterior Street Elevation

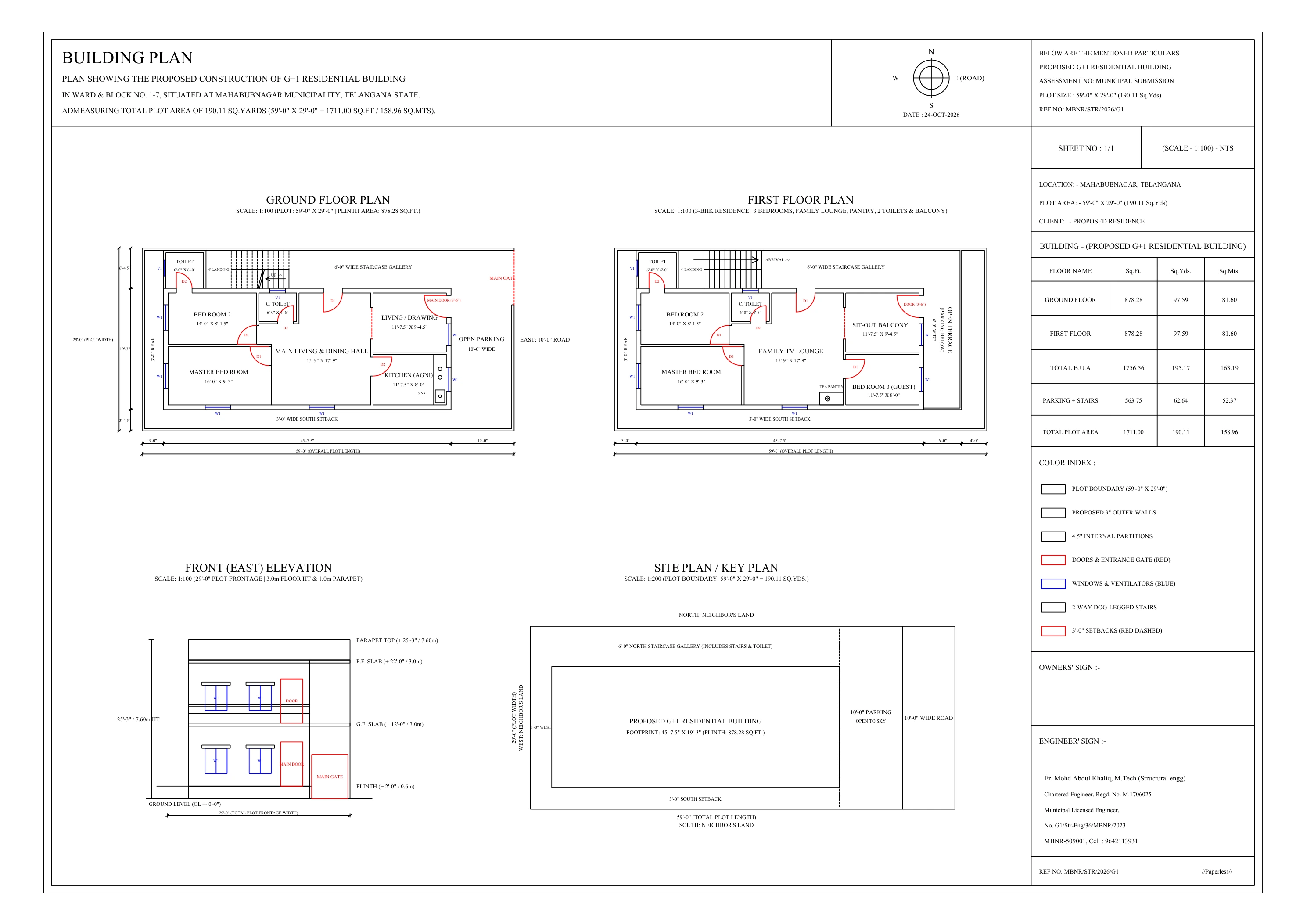

Architectural Submission Drawing
TS-bPASS Sanction Sheet 1/2 Architectural Submission Plan & Sections

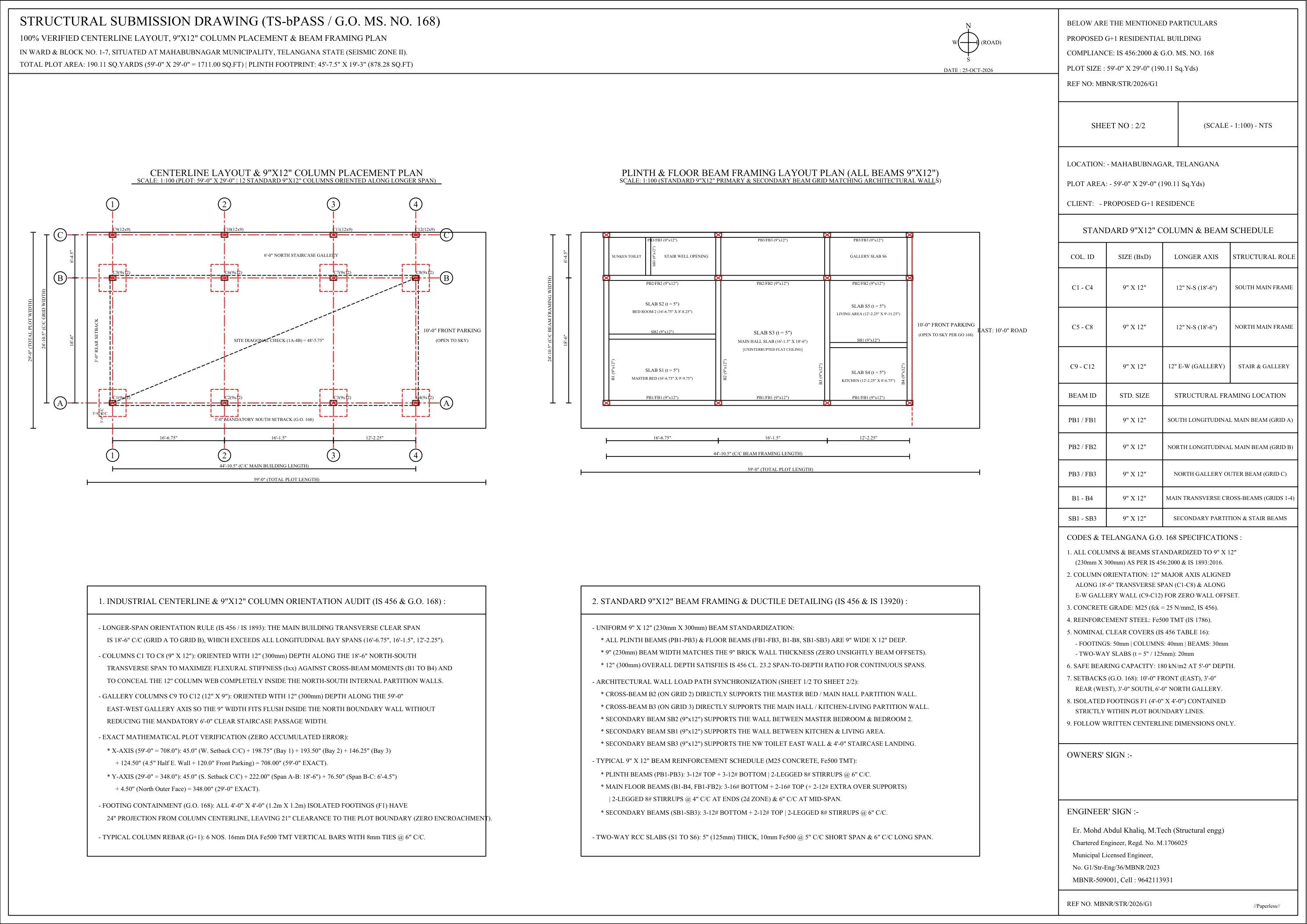

Structural Centerline & Framing Sheet
Engineering Sheet 2/2 Structural Centerline & Column Schedule
Click any thumbnail to launch high-resolution modal inspection
Universal Engineering Deliverables Vault

High-performance in-browser universal file viewer engine. Inspect AutoCAD vector .dxf sheets with batched Path2D canvas, multi-tab Microsoft Excel .xlsx BBS bar schedules, Word docx specifications, STAAD.Pro .std input code, and official municipal submission PDFs with zero desktop software required.

81+ Total Files
AutoCAD .DXF / .DWG
STAAD.Pro .STD Models
Bentley RCDC .XLSX BBS
Official PDF Drawings

PROJECT DELIVERABLES VAULT

Indexed Deliverables • Pure Client-Side Rendering

Project Structure In-Browser Engine
Select any engineering file from the left tree
Loading Deliverable...
AutoCAD Vector Engine (Path2D Batched) Scroll to Zoom • Drag to Pan • Double-Click to Fit
Engineering Preview

Deliverable File

Type: Binary Size: -- Folder: --

Download Native File

Official Project Document Viewer

G+1 Residential RCC Building • Structural Analysis & Detailing Dossier

Download PDF

STRUCTURAL BOQ & TS-bPASS STATUTORY COMPLIANCE

Ref: MBNR/STR/2026/G1 • G.O. Ms. No. 168 Statutory Verification • IS 456 M25 / Fe500 Takeoff

Total Registered Plot 190.11 Sq.Yds 59'-0" × 29'-0" (1,711.00 Sq.Ft)
Ground Plinth Area 878.28 Sq.Ft 51.3% Coverage (Permissible: 60%)
Total Built-Up Area 1,756.56 Sq.Ft G+1 Residential Framework
Floor Area Ratio (FAR) 1.02 FSI Permissible Max: 1.50 (Compliant)
STATUTORY SUBSTRUCTURE FOOTING CONTAINMENT CERTIFICATE

Zero Boundary Encroachment Verified: Centerline of perimeter Columns (C1–C4 & C9–C12) is set at 3'-3" (1.00m) from plot boundary. Isolated Footings F1 (4'-0" × 4'-0" / 1.22m × 1.22m) project 2'-0" (0.61m) from column centerline. Net clear clearance from edge of footing pad to registered plot boundary is 2'-1.5" (0.65m) INSIDE boundary. 100% compliant with TS-bPASS G.O. Ms. No. 168 and NBC 2016 Part 6.

Boundary / Margin Statutory Rule (G.O. Ms. No. 168) Prescribed Minimum Actual Provided on Site Clear Margin Buffer Statutory Verdict
Front Margin (East) Road Frontage Setback (10'-0" Road) 3.00m (10'-0") 3.39m (11'-1.5") +0.39m (+1'-3.5") Extra Compliant
Rear Margin (West) Rear Setback & Service Clearance 1.00m (3'-3") 1.00m (3'-3") Exact Containment Compliant
Side Margin 1 (North) Staircase Gallery & Ventilation Duct 1.00m (3'-3") 1.00m (3'-3") Exact Containment Compliant
Side Margin 2 (South) Side Pedestrian Passage 1.00m (3'-3") 1.00m (3'-3") Exact Containment Compliant
Total Building Height G+1 Residential Building Height Ceiling 10.00m (32'-9") Max 7.60m (25'-3") -2.40m Below Limit Compliant
Ground Plot Coverage Plot Coverage Statutory Ceiling 60.0% Max 51.3% 8.7% Open Buffer Compliant
DESIGNED, ENGINEERED & DEVELOPED BY SYED ABDUL RAHMAN Architectural & Structural Digital Twin • All Rights Reserved
Certified: Zero Encroachment • IS 456:2000 • IS 1893:2016 • TS-bPASS G.O. Ms. No. 168
Officially Stamped & Issued

INTELLECTUAL PROPERTY, LEGAL LICENSING & ENGINEERING DISCLAIMER

100% Sole Creator & Exclusive IP Rights Holder: Syed Abdul Rahman • Ref: MBNR/STR/2026/G1

100% Exclusive Software & Digital Twin IP Ownership

Protected under the Indian Copyright Act, 1957 (Sections 2(ffc), 14 & 63) and the Information Technology Act, 2000 (Sections 43 & 66). The entire web application architecture, UI/UX design system, 3D WebGL FEA space-frame engine, RCDC 3D rebar cage generators, procedural PBR shaders, and in-browser CAD/Excel/PDF viewers are the original innovation and 100% exclusive intellectual property of Syed Abdul Rahman.

Strict Prohibition of Reverse Engineering & Cloning

Any unauthorized copying, source-code extraction, scraping, decompiling, commercial redistribution, or replication of this website's concept, code, or 3D visualization pipeline is strictly prohibited and subject to civil and criminal prosecution under applicable Indian and international intellectual property laws.

Client Viewing License & Two-Tier Source Protection

The client is granted a permanent non-exclusive viewing license to inspect the 3D Digital Twin and download PDF drawings/renders for single-site execution on the designated 59'-0" x 29'-0" plot (Ref: MBNR/STR/2026/G1). Raw editable engineering source files (.dwg, .dxf, .std, .xls, .lsp) remain the proprietary assets of Syed Abdul Rahman and are secured behind the VIP PIN Gate.

Technical Engineering Disclaimer (IS 456:2000 & IS 1893:2016)

Structural models and quantities are engineered for Medium Soil Safe Bearing Capacity (SBC = 180–200 kN/m² at 1.50m depth), M25 grade concrete, and Fe500 TMT steel per IS 456:2000, IS 1893:2016 (Zone II), and TS-bPASS G.O. Ms. No. 168. Execution must adhere strictly to verified structural drawings and local site geotechnical validation.
